    Mounting is possible on all vehicles.

    BASE Rack Wiring

    Traditionally wiring for accessories fitted to roof racks has involved wiring going up windscreens, up out of B pillar door gaps and the like. As part of the ARB BASE Rack development ARB’s engineers have developed a wiring solution to neatly get wiring from inside the vehicle through the vehicle or canopy roof.

    Key criteria during development included:

    • Sealed wiring solution for passing wires through a vehicle roof
    • Seamless integration with ARB BASE Rack
    • Exit grommets to fit standard 10mm (3/8”) and 13mm (1/2”) OD conduit sizes
    • High quality automotive wire to JASO standards (PN 1780400 only)
    • Free from liquid adhesives
    • Disconnection kit to reseal roof exit points when rack is removed (PN 1780620)

    Fitting of the wiring kits requires 2 x 7mm (0.28”) and 1 x 25mm (1.0”) holes to be drilled in the vehicle or canopy roof. The 25mm hole is suitable for Deutsch DT-02 connectors to pass through. Mount location for popular vehicles has been developed allowing for side curtain airbags and other obstructions where necessary.

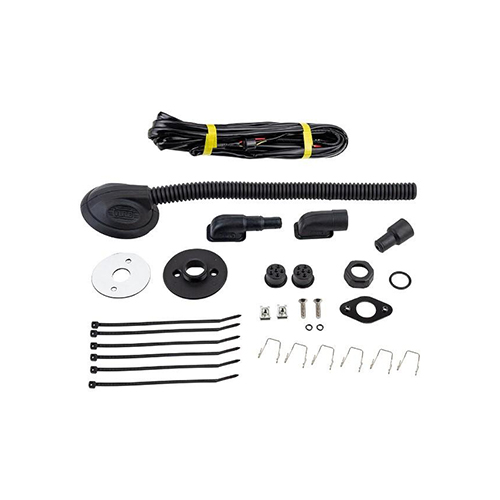

    The 1780410 kit includes:

    • Rubber outer boot with 300mm sheath
    • BASE Rack entry grommet
    • BASE Rack exit grommet
    • Direct exit grommet
    • Fasteners
    • Cable ties and edge clips
    • Two seal types have been developed to suit different customer wiring requirements.
    • Type 1 supports up to 6 x 2.2-3.2mm (0.087-0.125”) wires
    • Type 2 supports up to 2 x 2.2-3.2mm (0.087-0.125”) plus 2 x 3.9-5.8mm (0.154-0.228”) wires

    This product fits all vehicles.
