| Manufacturer | Model | Start Year | End Year |
|---|---|---|---|
| Ford | Transit Custom | 2023 |

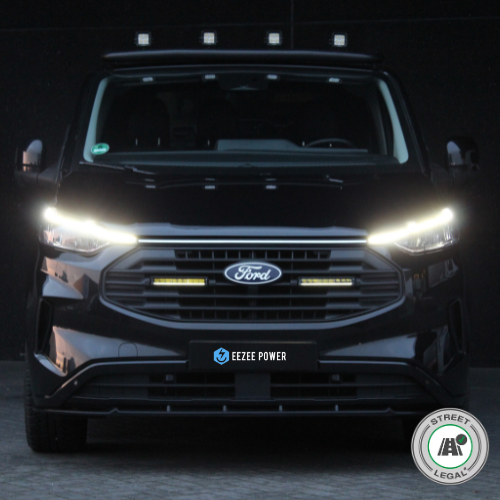

Eezee Power Shadow Vision LED 10" Light Bar kit for the Ford Transit Custom
The Eezee Power Shadow Vision LED Light Bar is the perfect upgrade for your Ford Transit Custom. This dual LED light bar combines powerful illumination with a sleek design and is supplied as a complete installation kit.
Complete kit for the Ford Transit Custom (not for Trail or Sport grille)
The kit includes everything you need for a clean and sturdy grille installation of the Light Bar and to control it. Two different kits are available: a basic kit and an extended kit.
Basic kit
3 functions (DRL white/amber + high beam) of the lights can be switched (on/off), not expandable with other lights on the vehicle or multifunctional.
- LED Light Bar 2 x 10" (inch)
- Mounting brackets specific for the Ford Transit Custom 2023+
- Wiring harness Ford Transit Custom 2023+
- Control module (3 outputs)
- 1x Control panel 3 outputs (for more information download the manual). If more outputs are required, choose the expandable version (8 outputs)
- Installation manual
Extended kit
3 functions (DRL white/amber + high beam) of the lights can be switched and expanded up to 8 lights/functions on the vehicle, with additional multifunctionality (warning/strobe) available.
- LED Light Bar 2 x 10" (inch)
- Mounting brackets specific for the Ford Transit Custom 2023+
- Wiring harness Ford Transit Custom 2023+
- Control module (8 outputs)
- 1x Control panel 1x8 outputs (for more information download the manual)
- Installation manual
Dual-color lighting: white and amber
The Shadow Vision is equipped with dual-color position lights. You can easily switch between white and amber light depending on the situation. This provides increased visibility and safety, both while driving and when stationary.
Flashing and/or strobe function for extra safety
In addition to steady white or amber light, the control module (Extended kit) features a flashing and strobe function. This function is ideal as a warning light, for example during roadside work or when you want to be extra visible. See the manual for available options.
General specifications
- Beam pattern: driving beam
- Position light: white and amber
- Light output: 2 x 3780 lumens
- Voltage: 10–30V
- Power: 45 Watt
- Current draw: 3.75 A (12V)
- Waterproof rating: IP68
- Light intensity: 1 lux at 370 meters
- Dimensions (without bracket): W 246 x H 40 x D 54 mm
Installation by our team
We can not only supply the kit, but also provide professional installation of the LED Light Bar on your Ford Transit Custom. Our team ensures a safe installation and a clean, finished result. This way, you don’t have to worry about the installation and can immediately benefit from the lighting.
Advantages at a glance
- Specifically designed for the Ford Transit Custom
- White and amber light in one housing
- Additional flashing and/or strobe function for maximum visibility (Extended kit)
- Durable, waterproof, and robust design
- Also available with professional installation
Complete your Ford Transit Custom with the Eezee Power Shadow Vision LED Light Bar kit — order directly online!
Would you like us to handle the installation as well? Please contact us to discuss the options.
This product fits the following vehicles:
| VEHICLE DIMENSIONS |
|---|
| Ford Transit Custom 2023+ | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L1 | L2 | ||||||||||||||||||
| A | Wheelbase (mm) | 3100 | 3500 | ||||||||||||||||
| B | Length of the overhang (mm) | 992 | 992 | ||||||||||||||||
| C | Totale length (mm) | 5050 | 5450 | ||||||||||||||||
| D | Cargo hold length (mm) | 2602 | 3002 | ||||||||||||||||
| E | Cargo hold width (mm) | 1777 | 1777 | ||||||||||||||||
| F | Width between wheel arches (mm) | 1392 | 1392 | ||||||||||||||||
| G | Cargo hold height (mm) | 1314 | 1314 | ||||||||||||||||
| H | Vehicle height (mm) | 1963 - 1981 | 1963 - 1981 | ||||||||||||||||
