Opstaptrede zwart aan trekhaak met sensor Opel Movano 2010-2022 (kopie)
EAN: 6097248793713
| Manufacturer | Model | Start Year | End Year |
|---|---|---|---|
| Nissan | NV400 | 2010 | 2022 |

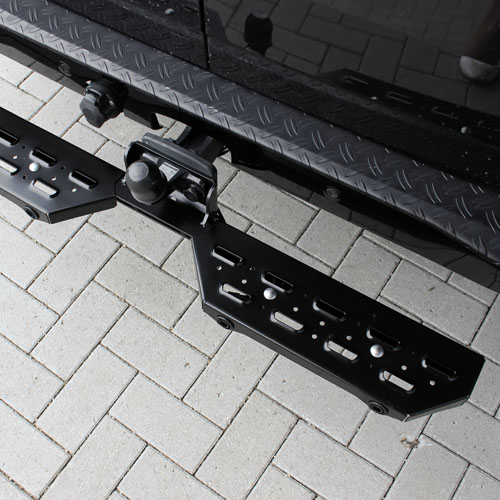

Van Step
A rear step for commercial vans serves as a stepping aid to access the loading area. This step is designed to be mounted to a tow bar (with bolts) and also comes with a relocation kit. With this kit, you can transfer existing sensors from the rear bumper to the step. Don’t have a tow bar? Then click here to view our other models.
Specifications
- Powder-coated metal frame
- Two step plates of 49x14 cm, positioned to the left and right of the tow ball
- Width: 112 cm
- Anti-slip surface
- Specifically designed for tow bar mounting (bolt-on installation)
- Delivered with relocation kit; see photo for included parts
The benefits of a rear step at a glance
- Prevents nasty slips when entering or exiting the loading area
- Reduces physical strain during manual loading and unloading, lowering the risk of injuries
- Protects the rear bumper of your van
Rear Step Installation
A rear step for a van with a tow bar can only be installed if the tow ball is mounted to a flange using two or four bolts. Installation is very simple: remove the tow ball, place the step between the ball and the flange, tighten the bolts – and you're done!
Prefer to have the rear step installed by us? Make an appointment. Our technicians will install the step while you enjoy a nice cup of coffee.
This product fits the following vehicles:
| NV400 FWD 2010 - 2022 | ||||
|---|---|---|---|---|
| L1H1 | L1H2 | L2H2 | ||
| A | Wheelbase (mm) | 3182 | 3182 | 3682 |
| B | Overhang (mm) | 1024 | 1024 | 1024 |
| C | Overall length (mm) | 5048 | 5048 | 5548 |
| D | Loadspace length (mm) | 2583 | 2583 | 3083 |
| E | Loadspace width (mm) | 1765 | 1765 | 1765 |
| F | Width between wheel arches (mm) | 1380 | 1380 | 1380 |
| G | Loadspace height (mm) | 1700 | 1894 | 1894 |
| H | Overall height (mm) | 2307 | 2500 | 2499 |
| L2H3 | L3H2 | L3H3 | ||
| A | Wheelbase (mm) | 3682 | 4332 | 4332 |
| B | Overhang (mm) | 1024 | 1024 | 1024 |
| C | Overall length (mm) | 5548 | 6198 | 6198 |
| D | Loadspace length (mm) | 3083 | 3733 | 3733 |
| E | Loadspace width (mm) | 1765 | 1765 | 1765 |
| F | Width between wheel arches (mm) | 1380 | 1380 | 1380 |
| G | Loadspace height (mm) | 2144 | 1894 | 2144 |
| H | Overall height (mm) | 2749 | 2488 | 2744 |
