Rear step black for mounting at removable towing hook with sensor MAN TGE 2017-2022
EAN: 6097252327324
| Manufacturer | Model | Start Year | End Year |
|---|---|---|---|
| MAN | TGE | 2017 | 2022 |

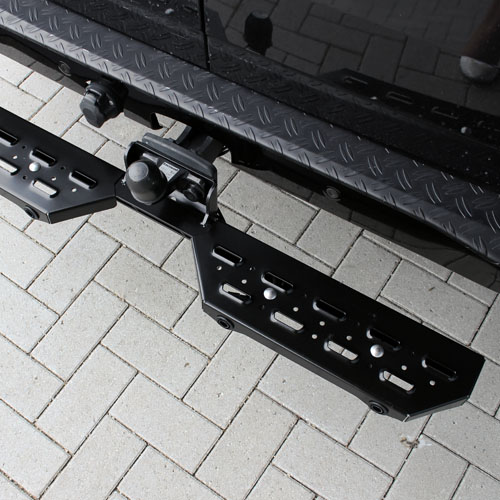

Van Step
A rear step for commercial vans serves as a stepping aid to access the loading area. This step is designed to be mounted to a tow bar (with bolts) and also comes with a relocation kit. With this kit, you can transfer existing sensors from the rear bumper to the step. Don’t have a tow bar? Then click here to view our other models.
Specifications
- Powder-coated metal frame
- Two step plates of 49x14 cm, positioned to the left and right of the tow ball
- Width: 112 cm
- Anti-slip surface
- Specifically designed for tow bar mounting (bolt-on installation)
- Delivered with relocation kit; see photo for included parts
The benefits of a rear step at a glance
- Prevents nasty slips when entering or exiting the loading area
- Reduces physical strain during manual loading and unloading, lowering the risk of injuries
- Protects the rear bumper of your van
Rear Step Installation
A rear step for a van with a tow bar can only be installed if the tow ball is mounted to a flange using two or four bolts. Installation is very simple: remove the tow ball, place the step between the ball and the flange, tighten the bolts – and you're done!
Prefer to have the rear step installed by us? Make an appointment. Our technicians will install the step while you enjoy a nice cup of coffee.
This product fits the following vehicles:
| TGE 2017 - 2022 | ||||
|---|---|---|---|---|
| L3H2 | L3H3 | L4H3 | ||
| A | Wheelbase (mm) | 3640 | 3640 | 4490 |
| B | Overhang (mm) | 1346 | 1346 | 1346 |
| C | Overall length (mm) | 5986 | 5986 | 6836 |
| D | Loadspace length (mm) | 3450 | 3450 | 4300 |
| E | Loadspace width (mm) | 1832 | 1832 | 1832 |
| F | Width between wheel arches (mm) | 1380 / 1030 | 1380 / 1030 | 1380 / 1030 |
| G | Loadspace height (mm) | 1626 - 1726 | 1861 - 1961 | 1861 - 1961 |
| H | Overall height (mm) | 2355 | 2590 | 2590 |
| L4H4 | L5H3 | L5H4 | ||
| A | Wheelbase (mm) | 4490 | 4490 | 4490 |
| B | Overhang (mm) | 1346 | 1901 | 1901 |
| C | Overall length (mm) | 6836 | 7391 | 7391 |
| D | Loadspace length (mm) | 4300 | 4855 | 4855 |
| E | Loadspace width (mm) | 1832 | 1832 | 1832 |
| F | Width between wheel arches (mm) | 1380 / 1030 | 1380 / 1030 | 1380 / 1030 |
| G | Loadspace height (mm) | 2089 - 2189 | 1861 - 1961 | 2089 - 2189 |
| H | Overall height (mm) | 2789 | 2590 | 2789 |
*F: Distance between the wheels: Single rear wheels = 1380 / Twin rear wheels = 1030. *G: Interior height with AWD and 4WD is approx. 100mm lower.
