Rear step black for mounting at removable towing hook with sensor Volkswagen Crafter 2017-2022

https://www.orionautomotive.com/web/image/product.template/5751/image_1920?unique=efa6dac InStock

EAN: 6097254153150

€ 467.99 tax excl.
€ 566.27 tax incl. 467.99 EUR € 467.99 tax excl.
€ 0.00
Not Available For Sale
Make: Volkswagen
Model: Crafter
Material: Steel
Color: Black
Version: With towing hook
Version 2: With sensor
  • Make
  • Model
  • Material
  • Color
  • Version
  • Version 2

This combination does not exist.

Please note This rear step fits only i.c.w. a tow bar with 2-hole system / tow bar up to 3500 kg.

Manufacturer Model Start Year End Year
Volkswagen Crafter 2017 2022

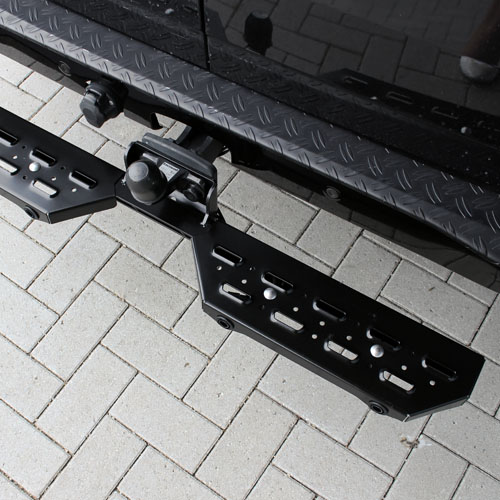

Van Step

A rear step for commercial vans serves as a stepping aid to access the loading area. This step is designed to be mounted to a tow bar (with bolts) and also comes with a relocation kit. With this kit, you can transfer existing sensors from the rear bumper to the step. Don’t have a tow bar? Then click here to view our other models.

Specifications

  • Powder-coated metal frame
  • Two step plates of 49x14 cm, positioned to the left and right of the tow ball
  • Width: 112 cm
  • Anti-slip surface
  • Specifically designed for tow bar mounting (bolt-on installation)
  • Delivered with relocation kit; see photo for included parts

The benefits of a rear step at a glance

  • Prevents nasty slips when entering or exiting the loading area
  • Reduces physical strain during manual loading and unloading, lowering the risk of injuries
  • Protects the rear bumper of your van

Rear Step Installation

A rear step for a van with a tow bar can only be installed if the tow ball is mounted to a flange using two or four bolts. Installation is very simple: remove the tow ball, place the step between the ball and the flange, tighten the bolts – and you're done!

Prefer to have the rear step installed by us? Make an appointment. Our technicians will install the step while you enjoy a nice cup of coffee.

This product fits the following vehicles:

Crafter 2017 - 2022
  L3H2L3H3L4H3
AWheelbase (mm)364036404490
BOverhang (mm)134613461346
COverall length (mm)598659866836
DLoadspace length (mm)345034504300
ELoadspace width (mm)183218321832
FWidth between wheel arches (mm)1380 / 10301380 / 10301380 / 1030
GLoadspace height (mm)1626 - 17261861 - 19611861 - 1961
HOverall height (mm)235525902590

  L4H4L5H3L5H4
AWheelbase (mm)449044904490
BOverhang (mm)134619011901
COverall length (mm)683673917391
DLoadspace length (mm)430048554855
ELoadspace width (mm)183218321832
FWidth between wheel arches (mm)1380 / 10301380 / 10301380 / 1030
GLoadspace height (mm)2089 - 21891861 - 19612089 - 2189
HOverall height (mm)278925902789

*F: Distance between the wheels: Single rear wheels = 1830 / Twin rear wheels = 1030. *G: Interior height with AWD and 4WD is approx. 100mm less.
