| Manufacturer | Model | Start Year | End Year |
|---|---|---|---|
| MAN | TGE | 2017 | 2022 |

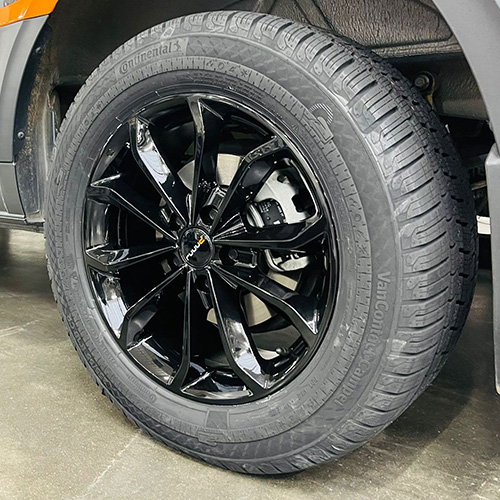

Wheels MAN TGE
Elevate the appearance of your MAN TGE with a set of high-quality wheels. This wheel set includes four reinforced rims, each paired with a tyre. Simply select your preferred tyre from our filter system. If your desired tyre isn't listed, don’t hesitate to contact us – we offer a wider range of tyres than what’s shown in our standard selection.
Specifications
Wheel details:
- Brand: Ruuud
- Model: Craftstar
- Size: 18 inch 8J
- Bolt pattern: 5x120
- Offset: 50
- Alloy: Aluminium
- Color: Gloss black Max. load capacity: 1050 kg.
Tyre details:
Allroad Loder
- Brand: Loder
- Type: AT#1
- Season: All-season (3PMSF)
- Tire size: 235/55 R18
- Load index: 118 ( max. 1320kg per tire )
- Speed index: T ( max. 190km/h )
- Fuel efficiency: C
- Wet grip: D
- External rolling noise in dB: 73 dB
- Runflat: No
- EAN: 4250010737953
All-season Continental
- Brand: Continental
- Type: Vancocamper
- Season: All-season (3PMSF)
- Tire size: 255/55 R18
- Load index: 120 ( max. 1400kg per tire )
- Speed index: R ( max. 170km/h )
- Fuel efficiency: C
- Wet grip: A
- External rolling noise in dB: 73 dB
- Runflat: No
- EAN: 4019238804669
Summer tires Nankang
- Brand: Nankang
- Type: CW-20
- Season: Summer
- Tire size: 235/55 R18
- Load index: 117 ( max. 1285 kg per tire )
- Speed index: R ( max. 170km/h )
- Fuel efficiency: C
- Wet grip: C
- External rolling noise in dB: 72 dB
- Runflat: No
- EAN: 4718022005175
The advantages of the wheel set
- Enhances the professional look of the MAN TGE.
- The 18-inch rims add extra presence and body to the van.
- Perfect fit for seamless integration.
- Most wheel sets come with certifications for addes reliability.
- Supplied complete with center caps and wheel bolts
Mounting the wheel set
Wheel sets can be fitted to the MAN TGE immediately after delivery by using the wheel bolts and center caps provided.
Would you rather have us fit the wheels under the van? No problem! Make an appointment with one of our employees.
This product fits the following vehicles:
| TGE 2017 - 2022 | ||||
|---|---|---|---|---|
| L3H2 | L3H3 | L4H3 | ||
| A | Wheelbase (mm) | 3640 | 3640 | 4490 |
| B | Overhang (mm) | 1346 | 1346 | 1346 |
| C | Overall length (mm) | 5986 | 5986 | 6836 |
| D | Loadspace length (mm) | 3450 | 3450 | 4300 |
| E | Loadspace width (mm) | 1832 | 1832 | 1832 |
| F | Width between wheel arches (mm) | 1380 / 1030 | 1380 / 1030 | 1380 / 1030 |
| G | Loadspace height (mm) | 1626 - 1726 | 1861 - 1961 | 1861 - 1961 |
| H | Overall height (mm) | 2355 | 2590 | 2590 |
| L4H4 | L5H3 | L5H4 | ||
| A | Wheelbase (mm) | 4490 | 4490 | 4490 |
| B | Overhang (mm) | 1346 | 1901 | 1901 |
| C | Overall length (mm) | 6836 | 7391 | 7391 |
| D | Loadspace length (mm) | 4300 | 4855 | 4855 |
| E | Loadspace width (mm) | 1832 | 1832 | 1832 |
| F | Width between wheel arches (mm) | 1380 / 1030 | 1380 / 1030 | 1380 / 1030 |
| G | Loadspace height (mm) | 2089 - 2189 | 1861 - 1961 | 2089 - 2189 |
| H | Overall height (mm) | 2789 | 2590 | 2789 |
*F: Distance between the wheels: Single rear wheels = 1380 / Twin rear wheels = 1030. *G: Interior height with AWD and 4WD is approx. 100mm lower.
